FIRST: Printing’s Five S’s—Sort, Set in Order, Shine, Standardize & Sustain
First published in FLEXO Magazine, November 2012 issue.
Written by Sean Teufler and Johnny Dye
Utilize tools like pads, brushes and sponges for plate cleaning, both for the image surface to avoid print defects and the back of the plate to remove residue interfering with adhesion to the mounting tape.
One of the most pressing problems that hinders the flexographic process is tinkering—a blend of undefined print processes and uncontrolled press inputs, held together by a print culture that sustains it. Issues that develop from this concoction often force a press operator to compensate for shortcomings in hopes of achieving an acceptable quality outcome; but alas, the fruits of this labor can be rejected product, unsatisfied customers and lost opportunities.
If tinkering is so obvious, then why does it happen? Two reasons:
1. Necessity, because the operator doesn’t have a choice but to try to make it right
2. Print culture, which develops over time
So, what can be done? First, we must get the print process under control. We must define the press inputs and decide on simple checks and balances, while understanding the limitations of the operator with each input. Lastly, we must address how to change the print culture.
In order to have a good grasp on consistency, a process must be defined and standards must be upheld. While there are various opinions in the industry on how to achieve desired outcome, all can agree that Flexographic Image Reproduction Specifications and Tolerances (FIRST) guidelines provide the basic understanding for control and repeatability in the flexographic process.
Think of FIRST as the “Five S’s of Printing.” You sort, set in order, shine, standardize and sustain. This journey begins at press by doing an optimization of your press operation, thereby assuring yourself there are no mechanical issues that will hinder the print process. Gears, bearings, frame walls and drying function are some of the many sources of mechanical problems. Press cleanliness is also very important to maintain.
We often find tinkering related to fatigued equipment. Equipment must work as designed, or it will cause problems for you when it counts. Smart tool selection is part of it. When we talk about the right tools, we often think of the basics. Also, consider tools for the operator that help maintain the process, like tools for measurement and inspection. Once a press can hold proper register, avoid adding to physical print changes, like bounce or chatter, and adequately dry the ink, you are well on your way to having an optimized print process.
We often find optimization steps skipped, only to rear up during the print process. Once an optimization has been completed, you define the print process and capabilities by doing a fingerprint. Fingerprinting is the step where numerical values are defined and which will allow for measurements and repeatability. All conditions need to be documented, like tension, tools used—tape, plate, ink type, anilox, etc. Many of the inputs we will discuss later on.
Once the press capability is harnessed, a characterization run will allow the prepress team and customer to realize the full potential and limitations of a particular press and the combination of variables, based off of repeatability. Lastly, and most importantly, these three steps of Optimization, Fingerprint and Characterization, will undoubtedly improve communication among all parties and build a foundation of understanding for further process improvement. Please remember, maintain the press if you expect to sustain repeatability.
Press inputs are defined as the parts that come to the press, so a print job can be assembled and printed. Again, the five inputs are prepress, ink, anilox, plate/mount and print samples. Furthering the investigation of these sources, two classifications were developed:
1. Internal—what the operator can do at press
2. External—what must be done before going press
PREPRESS FUNCTIONS
Let’s look at prepress from the viewpoint of the operator. What are the realities? Internally, the operator can only maintain proper press conditions. Thinking about it, any changes in printing process to satisfy one area would yield undesired consequences to other areas. A normal, repeatable setup, which the operator can supply will serve to isolate a prepress issue, but not address it. In these cases, the problem must always go back upstream.
Externally, there are a few common sources you will want to examine to see if they are addressed in the operation. Certainly, an operation would want to be based on a fingerprint/ characterization where standards have been established for both press and prepress. Print efforts that avoid this basic tenet of process control and capability will be fraught with problems.

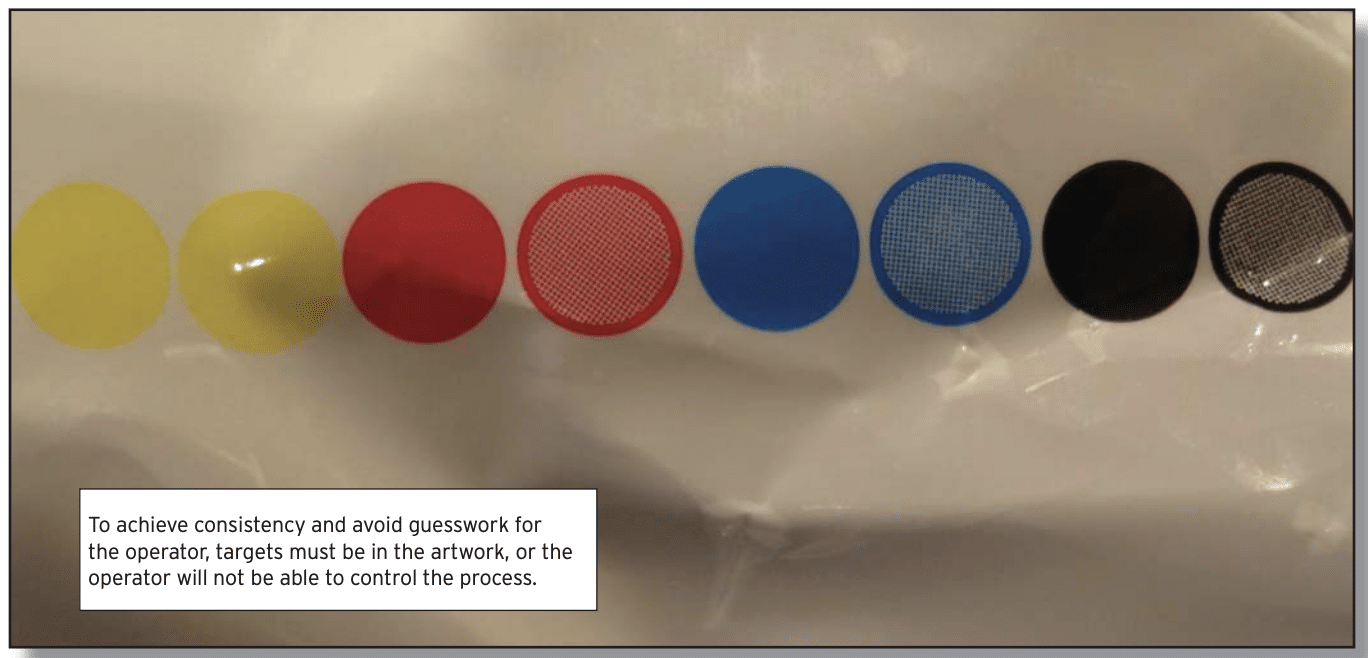

To achieve consistency and avoid guesswork for the operator, targets must be in the artwork, or the operator will not be able to control the process. If an operator is asked to qualify and run a job without control targets to help them measure, then you can guarantee different results from what is desired and no consistency from run-to-run.
Control must be accounted for, or expectations will be dramatically lowered. Artwork that is inherited from the customer and processed without re-separation to your press parameters will create unpredictable outcomes, so ask your customer about doing a reseparation and including pertinent targets.

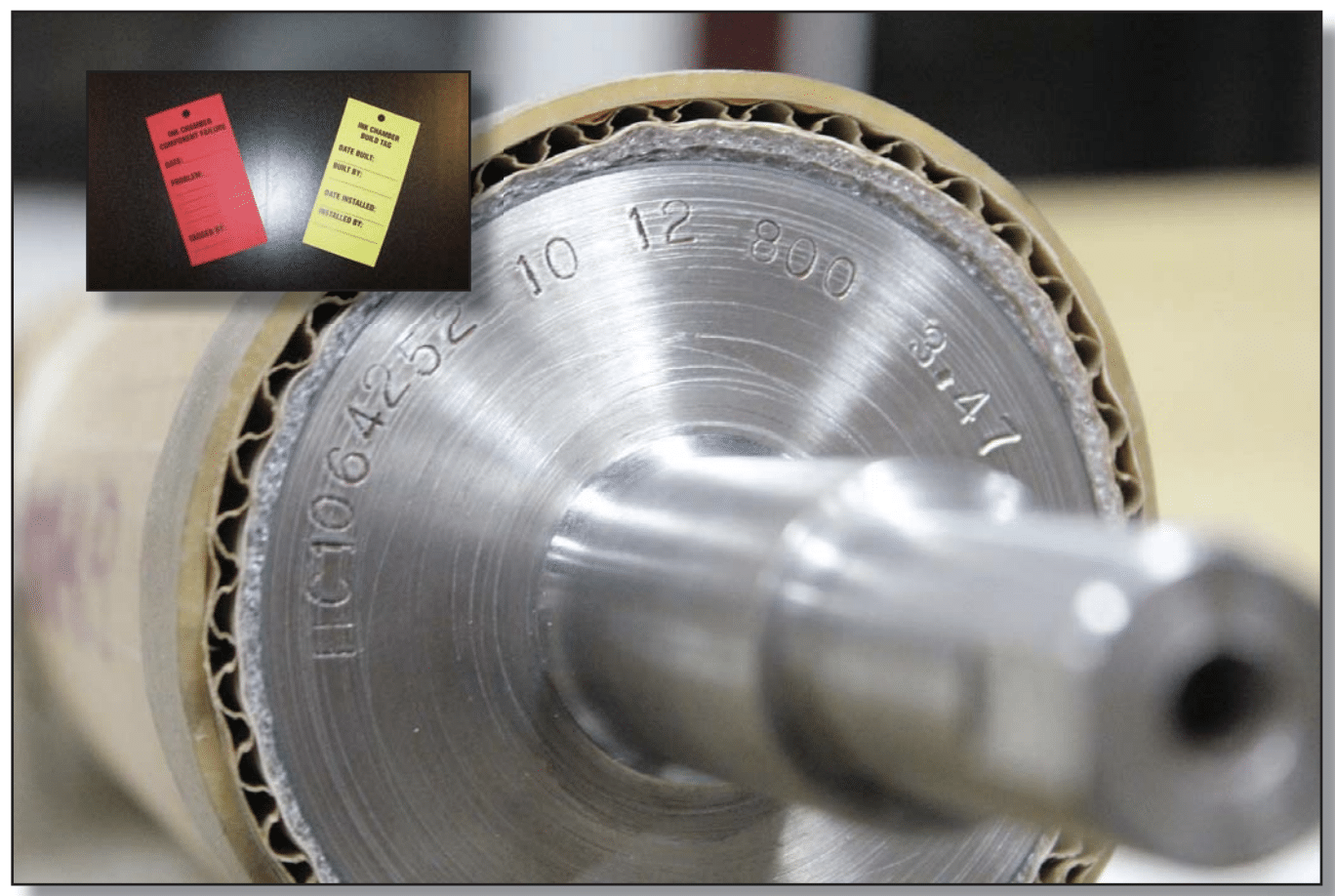

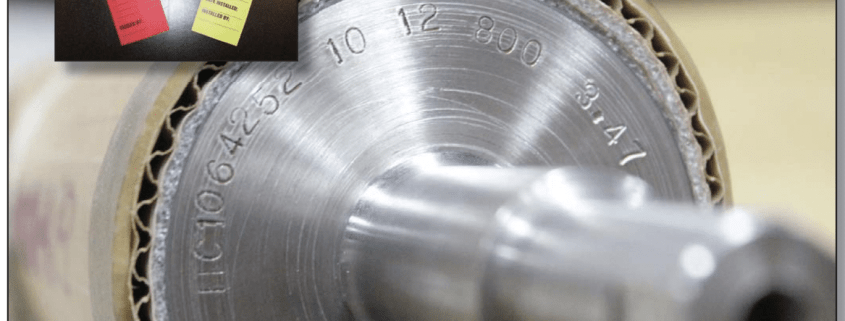

Certify the rolls and chambered doctor blades through a tagging system that makes identification simple. Also, flag potential issues associated with using an anilox with a minor flaw.
INK FUNCTIONS
All inks can be compromised due to temperature extremes or contamination. The external ink process must deal with three main issues; ink selection, color match and then storage. Specific selections should be determined in a lab through testing
Ink serves to provide three things: color, printability and adhesion to substrate. What are the expectations for an operator when it comes to ink? Internally, operators have one objective; maintain condition. When it comes to ink condition, there are four that must be met at press.
• If running water base, think of maintaining pH and viscosity
• For solvents, maintain viscosity with the proper blend
• For UV, avoid any light sources
All inks can be compromised due to temperature extremes or contamination. The external ink process must deal with three main issues; ink selection, color match and then storage.
• Ink selection should always focus on formulation, chemistry and adhesion to substrate. Specific selections should be determined in a lab through testing and should stay within the realm of ink suppliers and support staff
• When it comes to color matching, uncontrolled batches are probably the single greatest generator of waste in time and material at press. Much can be done beforehand to prevent all the waste. Have a vetted, stable proofing method, so the results are repeatable. If you cannot proof directly before going to press with an ink, retain wet samples of the matched ink made in press for later use in proofing new batches. Document batch formulas and any adjustments and recalculate for future use. Make sure you have a way to capture data by using spectrophotometers, viscosity checks, etc.
• Ink storage may seem like a mundane exercise, but inks saved for another run play a critical role in tinkering. Inks are challenged by their environments. Controlling the elements of aging, exposure to air, light and temperature extremes are as vital to storage as they are in press.
ANILOX FUNCTIONS
Aniloxs, hand-in-hand with doctor blades, supply a measured amount of ink and support the graphic image. Aniloxs are no exception as a source of tinkering. What would be our expectations of the operator? Internally, an operator would be expected to handle the primary cleaning process, maintain the physical condition, have aniloxs that are stored at press ready to go and be expected to use a simple scope to verify that cleaning methods are effective.
The key to anilox cleaning is to maintain wet ink on the anilox. Have the operators document the ink station shutdown procedure, keep it in mind and focus first on getting the anilox clean. Aside from the documentation, make sure you use a cleaner that actually works on the ink system you are cleaning up. Make sure the cleaners are anilox safe and those using them have the proper personal protection. If you decide to change cleaners, you may need to rework the cleaning documentation to reflect the new method.
External to the press, you would consider a secondary cleaning system like, media or soda blast, ultrasonic, soak tank, dishwasher type or laser. While there are a variety of systems to choose from, the most important point about any of them is keeping them maintained to the OEM specifications.
Equipment works best when operated under proper conditions of air pressure, exposure time, temperature, rotation and media type/specification. When the systems are not maintained, the cells won’t get cleaned and under extreme settings/conditions they can also become damaged.
Anilox maintenance has both internal and external functions. Internally, an operator would be expected to be responsible for the physical location of the anilox, including roll protection. Bearings and gears need to be maintained and checked for any signs of failure; before aniloxs suffer as a result. Externally, maintain a supply of gears and bearings that meet specifications. Anilox selection becomes a simple process for the operator in a standardized setting. Aniloxs should be defined from a job setup and from external selection processes.
Using a planned experiment featuring a banded roll or using a qualified recommendation, standardization of anilox specifications can reduce the variation found in uncontrolled inventories and narrow down to just a process, line/combo and then what is needed for specialty applications like metallic, opaque white, fluorescents, adhesives. Based on all this background work, operators should then be able to answer three simple questions when looking at an anilox:
1. What is it?
2. Where does it go?
3. Is it ready to be used?
Anilox verification is something that an operator can quickly do with a simple scope system. Once an anilox is cleaned at press, perform a quick examination for damage and cell cleanliness. This simple step avoids lengthy delays in press. Externally, once a roll has made it out of a secondary cleaning system, more sophisticated inspection systems can be used to recertify rolls. These systems need to be calibrated to be an effective measurement of anilox condition. Alternatively, aniloxs can be audited periodically by the anilox suppler.
The benefits of an audit include a fresh set of eyes to detect problems early, which often saves the bulk of the inventory from damage by raising awareness. After the cleaning and verification, certify the rolls through a tagging system that makes identification simple. Also, flag potential issues associated with using an anilox with a minor flaw.
PLATE MOUNTING FUNCTIONS
As plates and mounting relate to the operator, there are three items he or she can attend to. He/she must be able to clean the plate properly without causing plate lift, install without damaging and maintain the physical condition.
Externally, there are many pitfalls that must be avoided and can be addressed with a thorough inspection process. It begins by having the entire plate inspected for cracks, wrinkles, lost images or underdeveloped images. Lost images would include targets that have been removed for whatever reason. Remember that without measurable targets, the operator cannot measure and control and will be forced to make blind adjustments and tinker.

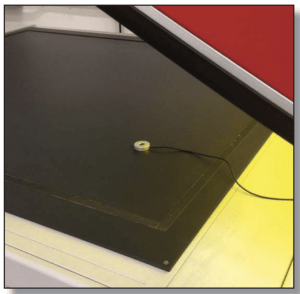

Utilize tools like pads, brushes and sponges for plate cleaning, both for the image surface to avoid print defects and the back of the plate to remove residue interfering with adhesion to the mounting tape. Tape selection should already be defined by the fingerprint. Mounting hardware should have an undamaged surface as those defects will otherwise translate to the print. Cylinder and mandrel accuracy must also be checked. Follow OEM protocols when designing best practices for these components.
Any platemounting equipment must be up to par. Components like bearings, locking head position, camera position must be evaluated and mechanical play must be eliminated.
PRINT SAMPLES

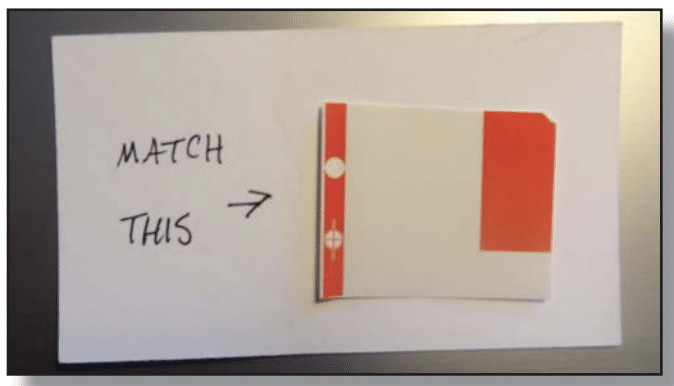

When an operator is provided a printed sample to match, he/she is faced with a very difficult situation. Operators can only match within the realm of specification determined by process and press capability and print samples may fall well outside those parameters.
Internally, all one can ask an operator to do is maintain the sample, look at it under the appropriate light source and measure when possible to verify a match. Often, the samples will run afoul of press capability because the sample was not originally run to some standardized format.
Operators can only match within the realm of specification determined by process and press capability. Print samples may fall well outside those parameters.
Externally, determining the true specification and communicating amongst all parties is essential to provide an operator with the needed target. Age of the sample and substrate condition affect the color perception and must be taken into account. Illumination is a standard that must be established between customer and printer. Illumination often reveals differences in pigments from what was used in the provided sample to the pigments used in your ink system.
Samples must be usable, meaning they are not in a destroyed condition. The customer needs to let you know if the provided sample reflects the true quality expectation or is it for fit/form/function only. Quantify the sample by using measurement. It is considered a best practice to write out and execute a process of communication for customer/sales/ prepress/printer to get the right information. Book standards may differ, so consider assigning a custom color to a match if it does not truly match any known color.
The last element to eliminate tinkering at press is to create a cultural change. There are five elements: management structure, support, process improvement technique, training and equipment analysis
Management must buy-in to the cultural change. If an operator reports that something needs to be repaired or done differently, management needs to listen and act. The essential elements of management can be split between supervisors and managers.
• Supervisors should have control of communicating to those supplying all the press inputs. They should also be interested in developing the skill set of the operators and insist proper press conditions are maintained
• Managers must communicate the results of these efforts, ensure support personnel have the necessary skills. Managers must also recognize and encourage the vital importance of press maintenance, which includes periodic shutdowns
Process improvement is the mechanism for making things better. Original processes must be documented and any changes must be carefully monitored for determining the added value. Through these efforts, greater attention to detail is created and that alone is a justifiable reason for process improvement.
Skill development is much more rapid and to the point if developed through training. For anyone to improve he/she must first understand; to understand, he/she must learn; to learn, he/she must seek knowledge. Get that knowledge from the FTA, schools, trade publications and suppliers. Training is reinforced through mentoring and skill demonstration. Incorporate both in your training program.
Also consider cross-training between departments to develop a much greater understanding of the entire process. Operators must adapt to their press culture the element of equipment analysis. How often do you find someone working with broken or substandard equipment that under the best of circumstances will not perform adequately? Worn and broken parts must be identified and eliminated.
Whenever pre-operations don’t go as planned…. you will get experiments and manipulations at press. This dynamic is known as tinkering. Build yourself a solid foundation following the FIRST principles and then look at your processes. Knowing that print expectations can never really be achieved by constantly modifying from the script, we must address the upstream problems before they get to press. Give each member of the upstream process the responsibility to manage and monitor his or her area of expertise. Create a cultural change that discourages tinkering instead of enabling.
Operators of presses must understand the limitations they face, how to recognize them and what their true roles are at press. These roles are limited to repeatable setups, following the recipe and sustaining the print capability. Anything else falls under the category of tinkering. Remove the obstacles to your printing process by getting rid of wasteful practices and become more competitive today.
